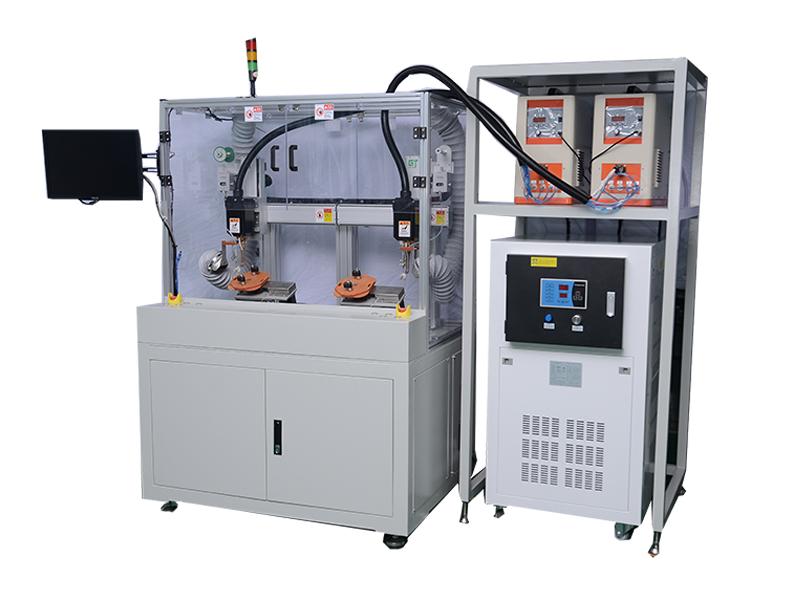

Ultrahigh Frequency Soldering Machine

Ultrahigh Frequency Soldering Machine

The ultrahigh frequency soldering machine uses high frequency induction heating technology for non-contact soldering, which can directly induction heat a certain part of the objects within one second without radiant heat problems and with no need to preheat, which conserves much energy. The ultrahigh frequency soldering system also supports temperature control for usage under a constant temperature.

Applications

3G, 4G antenna modules soldering (low frequency vibration force, high frequency vibration force, phaser soldering)

Advantages
  • High frequency induction heating technology only handles the metal and causes no harm to non-metal products.
  • Intelligent control with touch screen. Every parameter can be precisely regulated. Four-step temperature control.
  • Overheat, overpressure and overcurrent protection.
  • The soldering machine is multipurpose, which can process different products with the replacement of jigs.
Parameters
Model No. GT-GP351D GT-GP451D GT-GP551D
Outer dimensions L1050×W1000×H1500 (mm)
Movement range X axis 600mm 800mm 1000mm
Y axis 550mm 550mm 550mm
Z axis 100mm 100mm 100mm
Speed range 0-1000mm/s
Position repetition precision XYZ axes 0.02mm
R axis ±0.02°
Temp. range 50℃－1000℃
Temp. control precision ±2℃ (No air flow, no load)
Work load 30㎏
Program storage capacity Unlimited
Drive method Precision servo drive
Control system Industrial computer + motion control card
Communication port USB/RS232
Temp. controller High-frequency induction welder
Operating temp. 0－40℃
Operating humidity 20％－90％
Air supply 0.4~0.6Mpa
Power supply 220V 50Hz
Weight 120㎏
