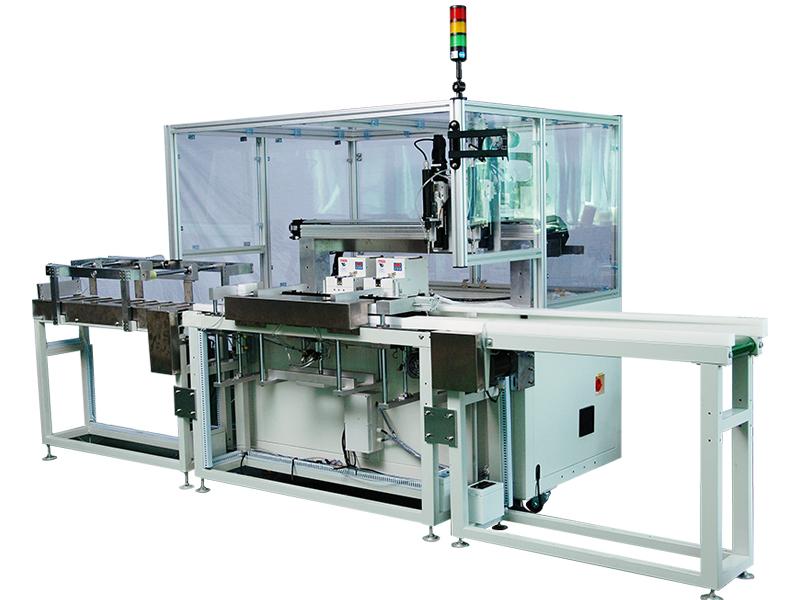

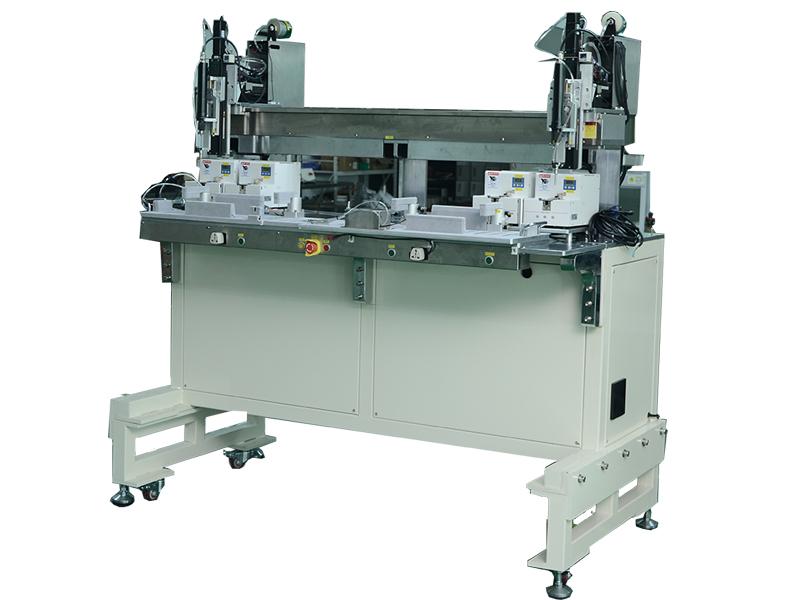

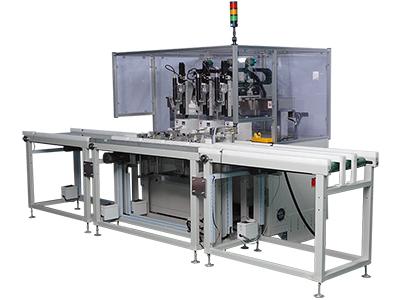

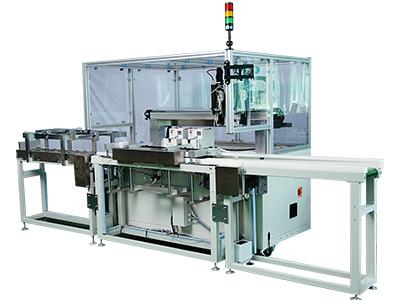

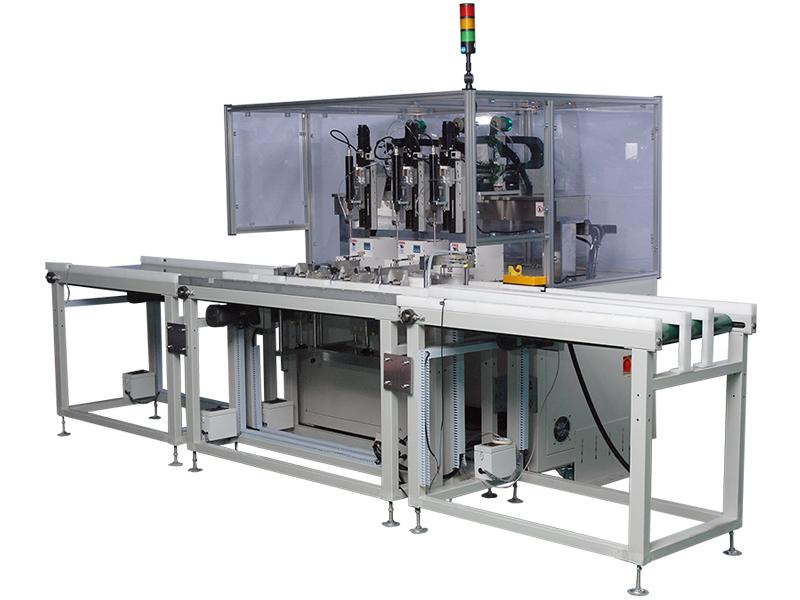

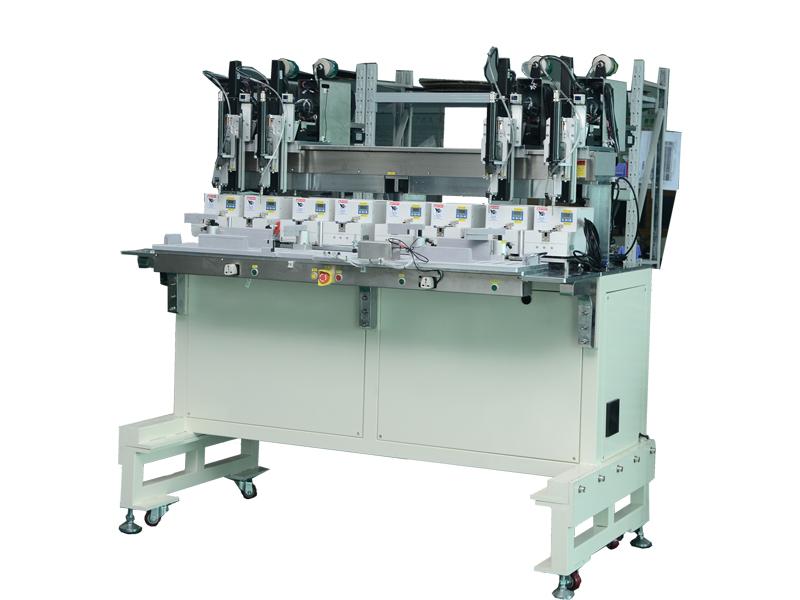

Multi-axis Screw Driving Machine

Product

Home
PCB Automatic Screw Driving Machine
Multi-axis Screw Driving Machine

The multi-axis screw driving machine can simultaneously process the products and improve the position repetition precision, suitable for larger electric products within 2000mm.

Advantages

Double X axis, double Y axis, double platform and double work system. Each platform can independently work to achieve a maximum efficiency.
Support coordinates import to track screw locking status in real time.
Industrial computer control with unlimited storage capacity.
Compatible with M0.8-M5 screws.

Parameters

Model No.		3-axis	6-axis	9-axis	12-axis
Outer dimensions		Customizable
Movement range	X axis	100mm-1500mm
	Y axis	300mm-500mm
	Z axis	100mm-200mm
Work platform		PLC control
Speed range		0.1~800mm/sec
Position precision		±0.02mm
Repetition precision		±0.02mm
Drive method		Manual/automatic
Work load		30kg
Drive method		Precision servo drive
Control system		Industrial computer + motion control card
Speed control		Automatic speed decrease and increase
undefinedEfficiency of locking screws		0.7-2s/PCS
Electric screwdriver		Upon request
Screw feeding		air input/air output (optional)
Screw feeding speed		60 screws/min
Compatible screw diameter		M0.8-M5
Compatible screw types		Round head/ flat head/ counter sunk
Compatible screw length		5MM-16MM
Compatible torque		0.1~30kgf.cm
Program storage capacity		Unlimited
Communication port		USB/RS232
Operating temp.		0℃~40℃
Operating humidity		20~90%
Air supply		0.4~0.6Mpa
Power supply		220V.50HZ
Weight		350kg
Automatic detections		Screw slippage detection			Yes
		undefinedScrew missing detection			Yes
		Screw height detection			Yes

Applications

Communication industry: mouse, smart phone, battery, tuner of different wavebands.
LED industry: LED modules, LED panel, LED chip, LED ball lamp and etc.
Household appliance industry: air conditioner remote control, TV enclosure, radio, sound and etc.
Automobile industry: vehicle-mounted remote control, car gear shift knob, vehicle-mounted DVD player, etc.
Toy industry: toy gun, toy handle and etc.

Professional non-standard custom-tailored solutions are provided by OKATA to meet screw locking requirements of hardware, plastic and wood products.
