Crane Controller Screw Driving

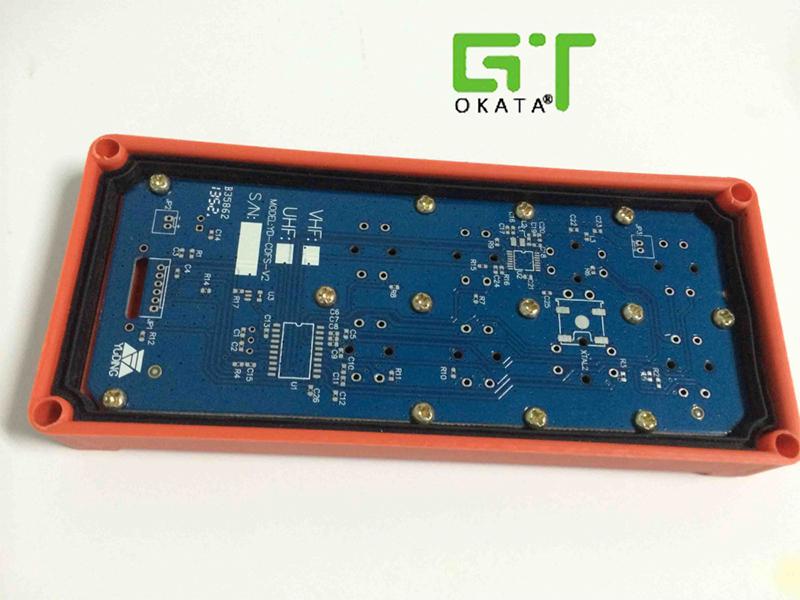

The product is shown as follows. The circuit board and the controller shell need to be locked and fixed with 13 M3*10 screws.

The high screw locking quality needs to be ensured with defective rate lower than 1‰. The surface of screws should maintain smooth and unscratched.

The crane controller belongs to precise electric product which requires super low defective rate, but the manual screw driving usually has high defective rate. Furthermore, due to the tiny size, the screw slippage and scratch problems also happen frequently.

• Features

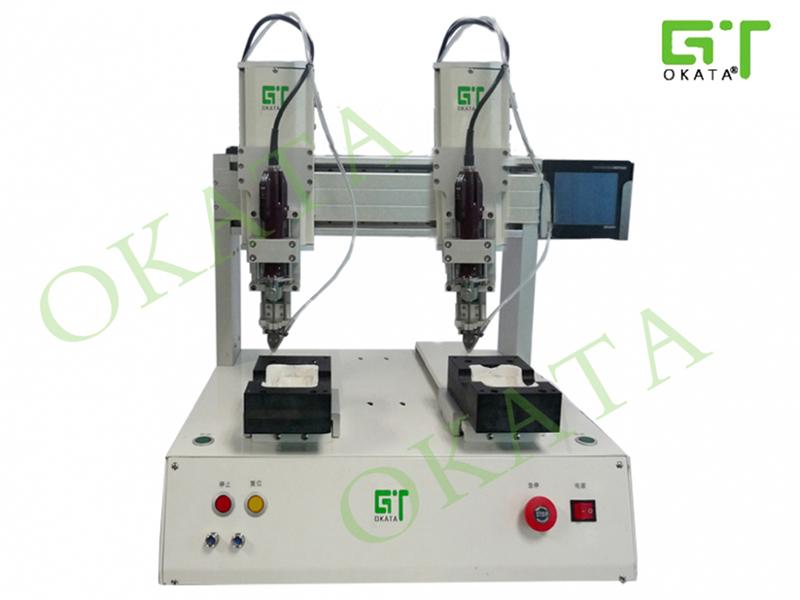

  X, Y, Z axis double head double platform auto screw driving machine. PLC control, precise operation, high stability. Double platform allows for simultaneous work of material loading and product handling, which leads to higher production efficiency.
• Clamping fixture
  The clamping fixture is designed by our professional mechanical engineers on basis of product’s characteristics.
• 3Operations
  The screw driving system is fully automatic. The workers only need to put the crane controller on the clamping fixture of Y platform and press the start button, then the screw driving machine will handle the products as designed programs.

OKATA double head automatic screw driving machine utilizes turbine vibration to rank the screws on the vibration guide rails and transport them to the screw distribution system. After distribution, the screws will be sent to screw nozzles driven by air pressure and this is how the auto screw feeding system works.

The robot arm can lock screws in accordance with the preset coordinates, which reduces the ineffective operations like human hand movement, screw picking and moving and screw alignment, greatly shortening the working cycle. On basis of product specifications and production requirements, jig and positioning systems can be designed to assist to improve the production efficiency.
