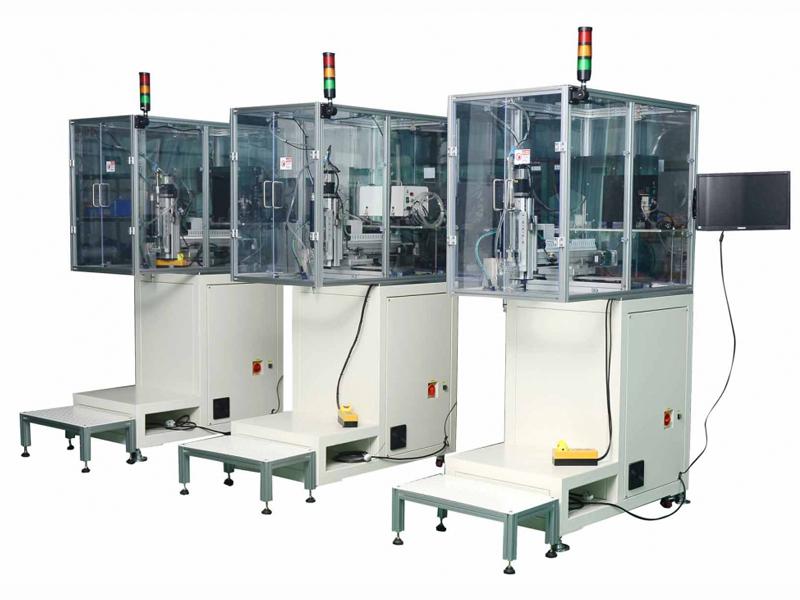

PLC Control Screw Driving Machine

The PLC control screw driving machine is suitable for handling products smaller than 600mm*300mm. The computer program of the industrial control equipment can precisely control the screw locking locations to set up a fully automatic screw driving process.

Advantages

CCD precise location.
High efficiency with locking two screws per second.
One PLC control screw driving machine is equivalent to three or four workers.
Enough torque makes the defective rate less than 0.1%.

Parameters

Model No.		GT-LS431XB
Outer dimensions		L730W800H1250mm
Movement range	X axis	400mm
	Y axis	300mm
	Z axis	100mm
	Work platform	Single/double platform
Speed range		0.1~800mm/sec
Position precision		±0.02mm
Repetition precision		±0.02mm
Drive method		Precision servo drive
Control system		Industrial computer + motion control card
Speed control		Automatic speed decrease and increase
undefinedEfficiency of locking screws		0.7-2S/PCS
Electric screwdriver		Upon request
Screw feeding		Air input/air output (optional)
Screw feeding speed		60 screws/min
Compatible screw diameter		air output: M2-M8mm air input: M1-M6mm
Compatible screw types		Round head/ flat head/ counter sunk
Compatible screw length		air output: 5-25mm air input: 2-25mm
Compatible torque		0.1~30kgf.cm
Program storage capacity		Unlimited
Communication port		USB
Operating temp.		0°C-40°C
Operating humidity		20~90%
Air supply		0.4~0.6Mpa
Power supply		220V.50HZ
Weight		230kg
Automatic detections		Screw slippage detection	Yes
		undefinedScrew missing detection	Yes
		Screw height detection	Yes

Applications

Communication industry: mouse, smart phone, battery, tuner of different wavebands.
LED industry: LED modules, LED panel, LED chip, LED ball lamp and etc.
Household appliance industry: air conditioner remote control, TV enclosure, radio, sound and etc.
Automobile industry: vehicle-mounted remote control, car gear shift knob, vehicle-mounted DVD player, etc.
Toy industry: toy gun, toy handle and etc.

Professional non-standard custom-tailored solutions are provided by OKATA to meet screw locking requirements of hardware, plastic and wood products.
