YGT-LS331D Double Head With Double Platform Screw Driving Machine

YGT-LS331D Double Head With Double Platform Screw Driving Machine

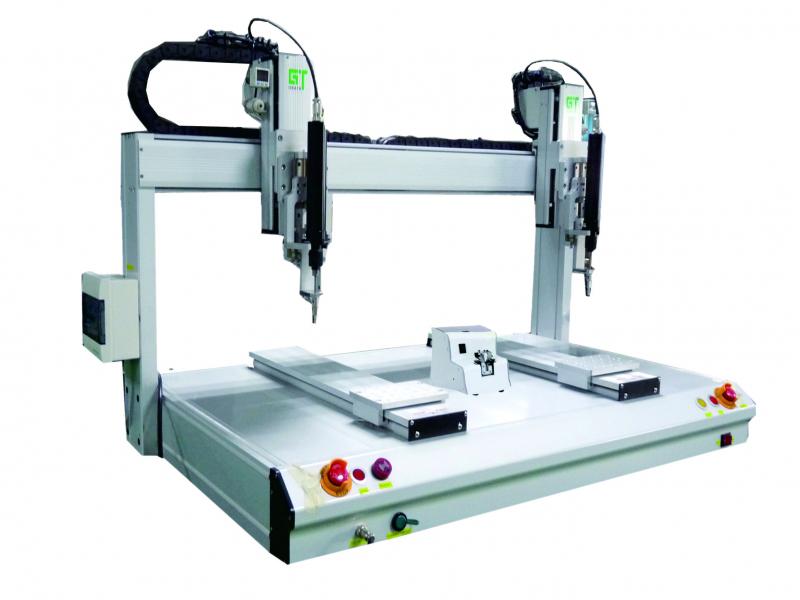

The GT-LS331D double head with double platform screw driving machine is suitable for handling products smaller than 300*300mm. Simultaneous work of the double head leads to a double production efficiency, which makes the screw driving robot a perfect choice for household appliances, electric consumer goods and photoelectric products.

Advantages

Double Y axis double work platform with double head achieves higher screw locking efficiency.
Two types of screw feeding systems: air output or air input type.
Precision motor control delivers higher precision and stability.
5-inch true color teaching pendant is easy to learn and operate.

Parameters

Model No.		GT-LS331D
Outer dimensions		L800W600H740mm
Movement range	X1/X2 axis	300mm
	Y1/Y2 axis	300mm
	Z1/Z2 axis	100mm
	Work platform	Double platform
Speed range		0.1~800mm/sec
Position precision		±0.02mm
Repetition precision		±0.02mm
Work load		8kg
Drive method		manual + automatic
Speed control		Automatic speed decrease and increase
undefinedEfficiency of locking screws		0.7-1.5S/PCS
Electric screwdriver		Upon request
Screw feeding		air input/air output (optional)
Screw feeding speed		60 screws/min
Compatible screw diameter		M0.8-M5
Compatible screw types		Round head/ flat head/ counter sunk
Compatible screw length		5-16mm
Compatible torque		0.1~30kgf.cm
Program storage capacity		Unlimited
Communication port		USB
Operating temp.		0℃~40℃
Operating humidity		20~90%
Air supply		0.4~0.6Mpa
Power supply		220V.50HZ
Weight		30kg	40kg	45kg	50kg
Automatic detections		Screw slippage detection		Yes
		undefinedScrew missing detection		Yes
		Screw height detection		Yes

Guangdong Okata Intelligent Technology Co.,Ltd. has been playing its part in the movement of automation development since our founding in 2005. Our concentration is on the R&D and production of high-precision automation equipment for unmanned production workshops. Our core products include automated soldering machines, automatic screw driving machines, and automatic dispensers. These pieces of advanced equipment are utilized by producers of electronics, electrical appliances, toys, communications equipment, cars, and other industries. We provide systematic automated solutions and comprehensive equipment that has made us a well-known enterprise in the industry.
