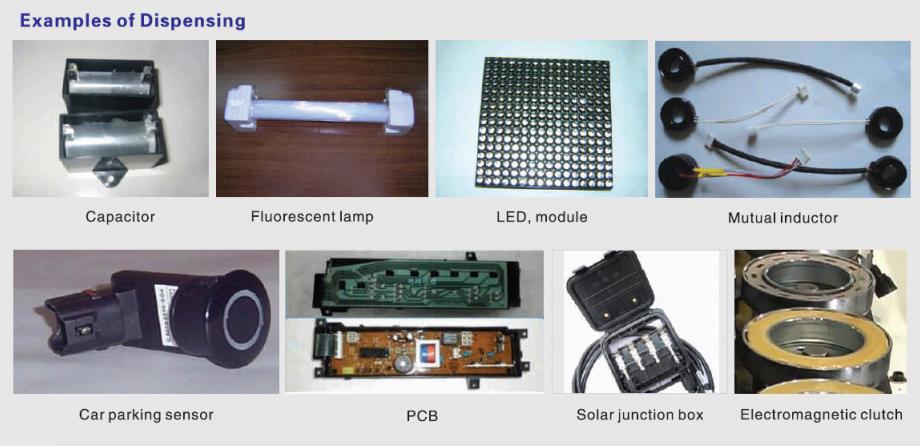

OKATA is a professional manufacturer of auto dispensing machine. Our GT-DJ531 PLC control dispensing machine is suitable for electric products dispensing, PCBA dispensing, semi-conductor sealing and coating, COB bonding and sealing, conformal coating, chip packaging and underfilling.
The PLC control dispensing machine is compatible with UV adhesive, AB glue, silicon (packaging black glue), EPOXY, conductive glue, thermal grease solder paste, chip bonder, thread locker, conformal coating and other kinds of fluid dispensing.
Model | GT-DJ531DL | GT-DJ541DL | GT-DJ431DL | |
Outer dimensions | L1320*W950*H600 (mm) | |||
Movement range | X axis | 500mm | 500mm | 400mm |
Y axis | 300mm | 400mm | 300mm | |
Z axis | 100mm | 100mm | 100mm | |
Work platform | sing/double platform | |||
Speed range | 0-500mm/s | |||
Position precision | ±0.02mm | |||
Repetition precision | ±0.02mm | |||
Dispensing speed | 30,000dots/hr | |||
Control system | IPC (optional)/ touch screen + PLC (standard) | |||
Machine body | 1320x950x600 mm | |||
Voltage | AC220V,50Hz,4Kw | |||
Visual position system | Optional (IPC needed) | |||
Height measurement | Laser measuring (optional) | |||
Material heating | Temperature controller + heating tube (optional) | |||
Drive method | Precision servo drive | |||
Dispensing valve | 1 (standard) / 2 (optional) | |||
Compressed gas | 4-6㎏/㎝² | |||
Programing | PLC teaching (standard) / data import (optional) | |||
Air supply | 0.4-0.6Mpa | |||
Power supply | 220V.50HZ | |||
Weight | 150KG |
