Double Platform Soldering Machine

Double Platform Soldering Machine

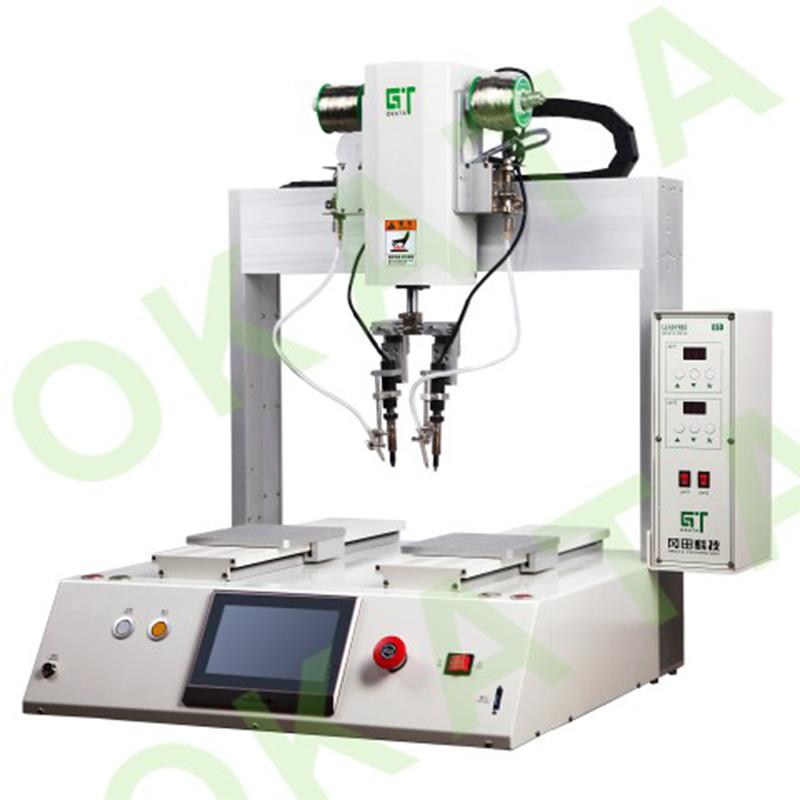

The double platform soldering machine belongs to double Y platform soldering equipment. One Y axis platform can be unloaded and subsequently loaded while the other one is still being worked on, which makes the production efficiency of the double platform soldering system twice that of the single Y platform soldering machine. The special assembly process of the timing belt and motor is adopted to completely solve the looseness problem of the timing belt after long-term use.

Advantages

Compound movement of X, Y, Z and R axis meets the 3D soldering requirements.
R axis achieves rotary soldering
Z axis driving method: timing belt or ball screw optional.
Double Y axis platform allows for alternate material loading and unloading without machine stop.

Parameters

Model No.		GT-HJ4331T/S	GT-HJ5331T/S	GT-HJ5441T/S
Outer dimensions		L650×W640×H820 (mm)	L750×W740×H820 (mm)	L750×W840×H820 (mm)
Movement range	X axis	400mm	500mm	500mm
	Y1 axis	300mm	300mm	400mm
	Y2 axis	300mm	300mm	400mm
	Z axis	100mm	100mm	100mm
	R axis	±300°	±300°	±300°
Work platform		Double platform
Speed range		0-500mm/s
Position repetition precision	XYZ axes	±0.02mm
	R axis	±0.02°
Temp. range		50℃－550℃
Temp. control precision		±2℃ (No air flow, no load)
Solder feeding speed		０－50mm/s
Applicable solder wire diameter		0.5/0.6/0.8/1.0/1.2mm
Work load		8㎏
Program storage capacity		≥100 programs
Drive method		Precision stepper motor + timing belt/precision stepper motor + ball screw
Control system		PLC + PID
Communication port		USB
Soldering tip		1/2 (customizable)
Temp. controller		Single/dual output
Solder feeding mechanism		Single /double solder feeder (solder wire perforation mechanism available)
Operating temp.		0－40℃
Operating humidity		20％－90％
Air supply		0.4~0.6Mpa
Power supply		220V 50Hz
Heating power		200W
Weight		60㎏	60㎏	65㎏

Note: above are the parameters of a standard soldering machine. A larger movement range is customizable upon your request.

Applicable industries

The double platform soldering system is suitable for soldering products of a wide range of industries.

Communication industry: Apple products cables, HDMI, RJ45, FPC, tuner, etc.
LED industry: LED panel, LED strip, LED rectifier, LED ball lamp, LED chip and etc.
Household appliance industry: air conditioner remote control, air conditioner control panel, computer loudspeaker, TV switch connector and so on.
Automobile industry: ignition switch, auto fuel measurement sensor, navigator, motorcycle flash, etc.
Toy industry: toy handle connector, PCB and etc.

Professional non-standard customization solution is also available in OKATA to satisfy the soldering requirements of different electronic products.
