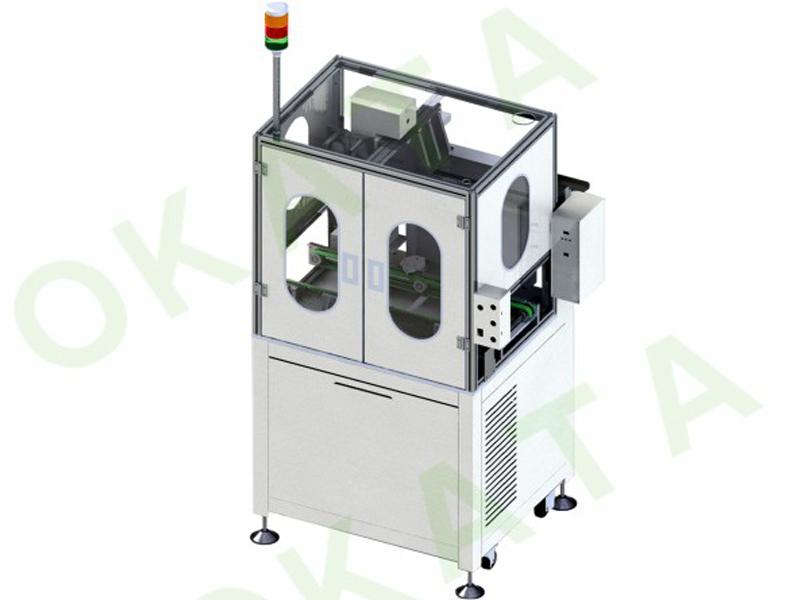

GT-HJ351DX PLC Control Soldering Machine
Made up of several PLC control soldering machines
The automatic soldering system consists of 1 double soldering head automatic soldering machine, 2 turnover mechanisms and 3 load transferring mechanisms. According to customer’s requirements, different equipment stations could be set for product transport direction change, product rotation at any angle, free soldering at any position and flexible connection to transport rails with various directions and different heights, which achieves lower production cost, higher production efficiency, much less occupied space and higher versatility.
- Compound movement of X, Y, Z and R axis meets the 3D soldering requirements.
- R axis achieves rotary soldering.
- Precise serve motor control achieves higher precision and stability.
- Industrial personal computer control with unlimited program storage capacity.
| Model No. | GT-HJ351ZX | GT-HJ451ZX | GT-HJ551ZX | GT-HJ561ZX | |
| Outer dimensions | L700×W660×H1300 (mm) | L700×W660×H1300 (mm) | L700×W660×H1300 (mm) | L700×W660×H1300 (mm) | |
| Movement range | X axis | 300mm | 400mm | 500mm | 500mm |
| Y axis | 500mm | 500mm | 500mm | 600mm | |
| Z axis | 100mm | 100mm | 100mm | 100mm | |
| R axis | ±300° | ||||
| Speed range | 0-1000mm/s | ||||
| Position repetition precision | XYZ axes | 0.02mm | |||
| R axis | ±0.02° | ||||
| Temp. range | 50℃－550℃ | ||||
| Transport rail | Rail width 50mm-500mm available | ||||
| Temp. control precision | ±2℃ (No air flow, no load) | ||||
| Solder feeding speed | 0－50mm/s | ||||
| Applicable solder wire diameter | 0.5/0.6/0.8/1.0/1.2mm | ||||
| Work load | 30㎏ | ||||
| Program storage capacity | Unlimited | ||||
| Drive method | Precision servo drive | ||||
| Control system | Industrial computer + motion control card | ||||
| Communication port | USB+RS232 | ||||
| Soldering tip | 1/2(customizable) | ||||
| Temp. controller | Single/dual output | ||||
| Solder feeding mechanism | Single /double solder feeder (solder wire perforation mechanism available) | ||||
| Operating temp. | 0－40℃ | ||||
| Operating humidity | 20％－90％ | ||||
| Air supply | 0.4~0.6Mpa | ||||
| Power supply | 220V 50Hz | ||||
| Weight | 260㎏ | ||||
The GT-HJ351DX PLC control soldering workstation is suitable for a wide range of applications:
- Communication industry: Apple products cables, HDMI, RJ45, FPC, tuner, etc.
- LED industry: LED panel, LED strip, LED rectifier, LED ball lamp, LED chip and etc.
- Household appliance industry: air conditioner remote control, air conditioner control panel, computer loudspeaker, TV switch connector and so on.
- Automobile industry: ignition switch, auto fuel measurement sensor, navigator, motorcycle flash, etc.
- Toy industry: toy handle connector, PCB and etc.
Professional non-standard customization solution is also available in OKATA to fit your specific needs.
