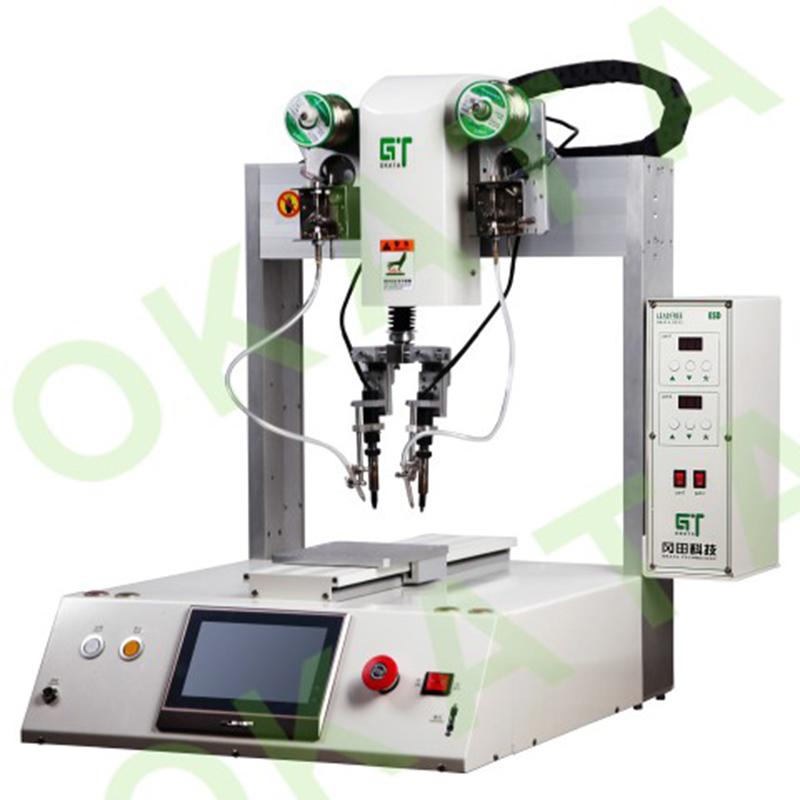

Single Platform Soldering Machine

Single Platform Soldering Machine

The single platform soldering machine series features single Y axis and single working platform, supporting spot welding and drag soldering. The soldering iron tips can be customized. A special assembly process of the timing belt and motor is adopted to effectively solve the looseness problem of the timing belt after long-term use.

Advantages
  • Simple programming allows for direct input of the coordinates of a solder joint.
  • Z axis can adopt the timing belt or the precision ball screw upon request to solve the looseness or tension problem of the timing belt after long-term use and satisfy customer’s high precision requirements.
  • Temperature control system is capable of maintaining the tip temperature with industry leading stability.
  • High control precision within 0.02mm guarantees the precision of soldering position.
Parameters
Model No. GT-HJ331T/S GT-HJ431T/S GT-HJ531T/S GT-HJ541T/S
Outer dimensions L550×W640×H820 (mm) L650×W680×H820 (mm) L700×W680×H820 (mm) L720×W680×H820 (mm)
Movement range X axis 300mm 400mm 500mm 500mm
Y axis 300mm 300mm 300mm 400mm
Z axis 100mm 100mm 100mm 100mm
R axis ±300° ±300° ±300° ±300°
Work platform Single platform
Speed range 0-500mm/s
Position repetition precision XYZ axes ±0.02mm
R axis ±0.02°
Temp. range 50℃-550℃
Temp. control precision ±2℃ (No air flow, no load)
Solder feeding speed 0-50mm/s
Applicable solder wire diameter 0.5/0.6/0.8/1.0/1.2mm
Work load 8㎏
Program storage capacity ≥100 programs
Drive method undefinedPrecision stepper motor + timing belt/precision stepper motor + ball screw
Control system PLC + PID
Communication port USB
Soldering tip 1/2(customizable)
Temp. controller Single/dual output
Solder feeding mechanism Single /double solder feeder (solder wire perforation mechanism available)
Operating temp. 0-40℃
Operating humidity 20%-90%
Air supply 0.4~0.6Mpa
Power supply 220V 50Hz
Heating power 200W
Weight 30㎏ 40㎏ 45㎏ 50㎏

Note: above are the parameters of a standard soldering machine. A larger movement range is customizable upon your request.

Applicable industries

The single platform soldering system is suitable for soldering products of a wide range of industries.

  • Communication industry: Apple products cables, HDMI, RJ45, FPC, tuner, etc.
  • LED industry: LED panel, LED strip, LED rectifier, LED ball lamp, LED chip and etc.
  • Household appliance industry: air conditioner remote control, air conditioner control panel, computer loudspeaker, TV switch connector and so on.
  • Automobile industry: ignition switch, auto fuel measurement sensor, navigator, motorcycle flash, etc.
  • Toy industry: toy handle connector, PCB and etc.

Professional non-standard customization solution is also available in OKATA to suit different electronic products.
